SPECIFICATIONS

AI Functions: Smart Tracking

APP: Videolink

Alarm Action: FTP Photo,Local Alarm

Alarm Type: telefon Alarm,Local Alarm,FTP Photo,Email Photo

App name: Other

Audio Output: Two Way Audio

Auto Tacking/Cruise: support

Auto Zoom: support

Certification: CE,FCC,RoHS

Choice: yes

Color: black

Color Night Vision: Other

Connectivity: IP/Network Wired

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 200m-300m/400m-500m

Installation: Wall Mounted

Internal Storage: 512G

Led: Laser Infrared Led

Lens (mm): 2mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.01LUX-0.0001LUX

Model Number: TP-PTZ08BR-54X/TP-PTZ08BR-90X

Movement Range(Pan): Other

Movement Range(Tilt): Other

Operating Temperature: -50°- +60°

Optical Zoom: None

Power Consumption(W): 0-30W

Power Mode: Mains Electricity

Power Source: With Poe,Normal

Power Supply: With POE

Power Supply(V): 12V

Protocol: Hikvision,Onvifi,Dahua

Rechargeable Battery: None

Rechargeable Battery Capability: Other

Rotation: Horizontal: 360 degrees, Vertical: 90 degrees

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof,Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,Windows 8,Windows 7,macOS,Windows XP

TF Card: None

TVPSII Model: TP-PTZ08B-54X

Video Compression Format: H.265

Viewing Angle : 360°

Warranty: 3 years

Zoom: 5x

Zoom type: Optical zoom

is_customized: Yes

Friendly reminder:

• Compatible With Network Work Video Recorders Such as Dahua NVR;Hikvision NVR;XMeye NVR,TVPSII NVR and other Onvif protocol NVR.

• This Camera is POE PTZ Camera ,it can powered by 12V Power adapter,POE Switch,Poe injector or POE NVR.it can be controlled by phone(APP),PC(Web Browser,PC Software) and DVR NVR.

• Support automatic tracking,automatic cruise,and SD storage(so can choose buy camera with 128GB, 256GB SD Card).

• Support multiple cruise settings, fixed-point cruise, cruise between two points, cruise between multiple points and 360-degree cruise

• Automatic cruise and automatic zoom( Lens auto Zoom in and out) are the basic functions of the PTZ Camera. Many other brands of PTZ Camera do not support them, so Becarful!

• GK7605 V100+1/2.8" Sony IMX335:6MP,3072px*2048px,25fps (support SD Card ,Auto Tracking)

• Mstar338Q+1/2.8" Sony415:8MP 4K ,3840px*2160px,20fps (support SD Card,Auto Tracking)


• Support Auto Zoom,Auto Tracking human

Q:What is H.265+ Compression?

A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

Q:There are many ommand statement in PTZ Menu.

A:Support AB preset scan, patrol scan, idle function, focus zoom, timer function, subject of dome camera and so on......

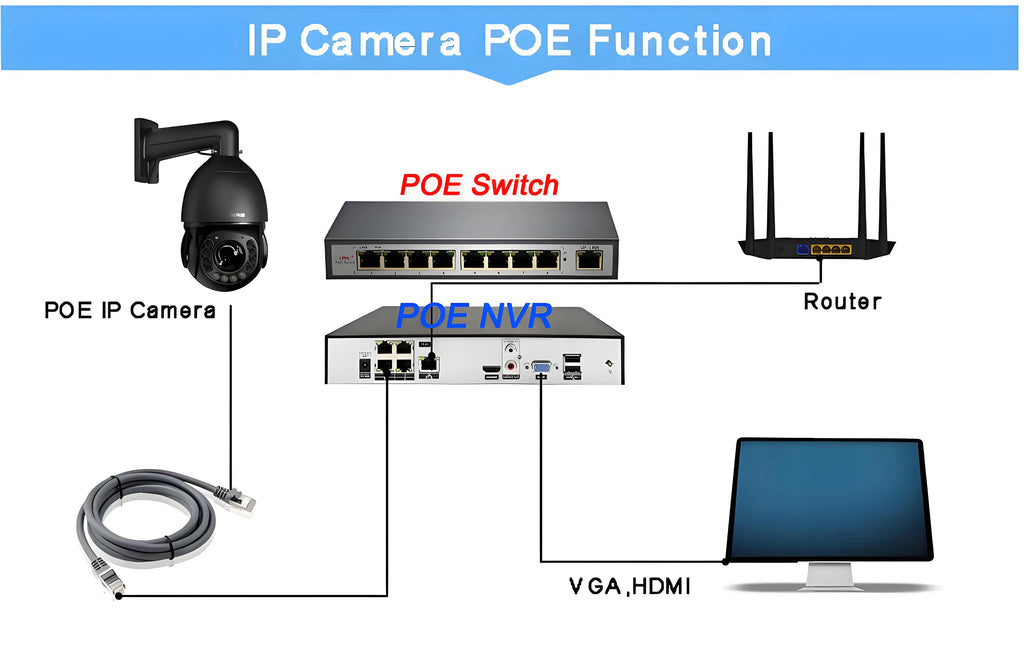

Q:What is POE function for IP Camera?

A:Only use Net cabletransmission signal and power supply,so not need use power adpater

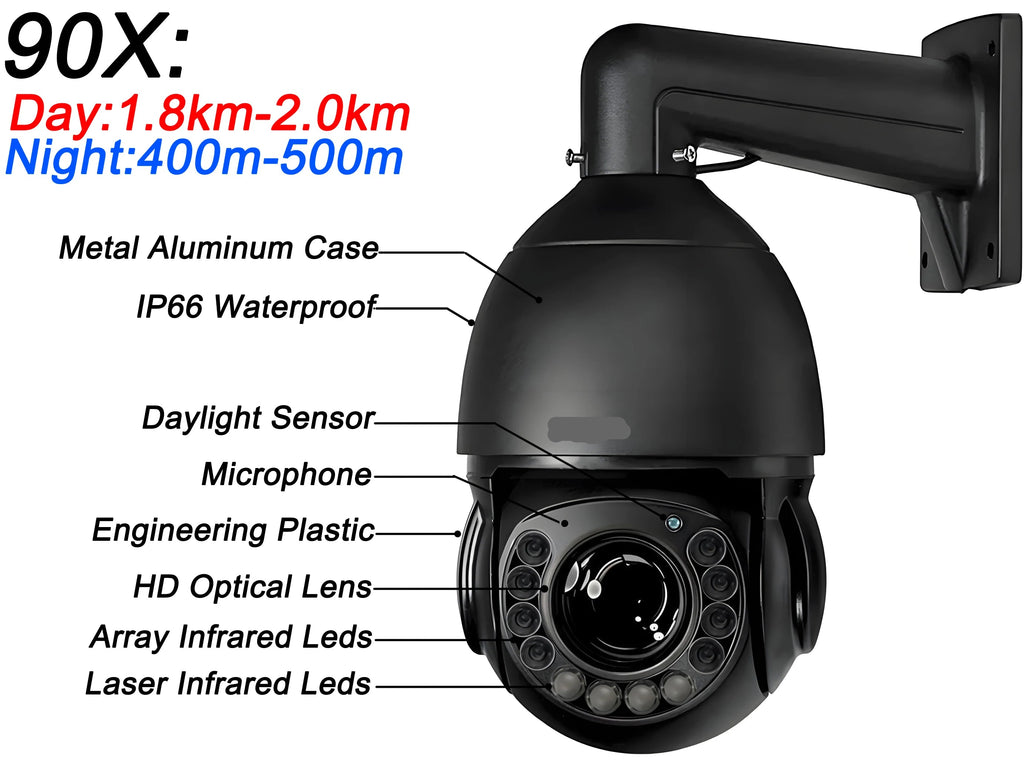

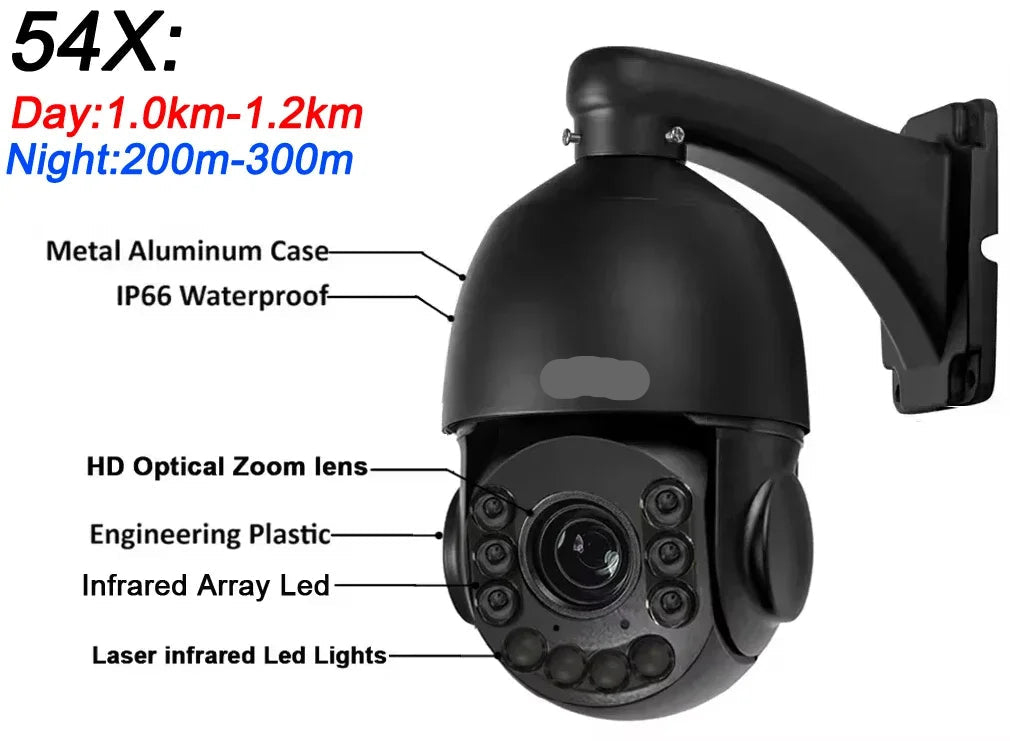

• 54X Infrared distance(200m-300m)

• 90X Infrared distance(400-500m)

Resolution	8MP 4K		6MP
	Mstar338Q		GK7605
CMOS Sensor	4K 8MP 1/2.8" Sony IMX415		6MP 1/2.8" Sony IMX335
Min illumination	Low illumination 0.001Lux		Black light illumination,0.0001Lux
Video processing	H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format
Image output	8MP 3840px*2160px@20fps		6MP 3072px*2048px@25fps
Shutter	1/50 (1/60) seconds to 1/10000 seconds
Infrared Led Light	6pcs infrared Array+4pcs Laser Led(54X)/8pcs infrared Array+4pcs Laser Led(90X)
IR Distance	54X:200m-300m/90X:400m-500m
Conversion mode	Day and night conversion mode
Noise reduction	Support 2D/3D noise reduction
Wide dynamic	digital wide dynamics
Network Interface	1*RJ45 network interface,10/100M adaptive
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -50 ℃ ～ 65 ℃ test is stable and reliable
Cruise settings	Support(Fixed-point cruise, cruise between two points,360° cruise,......)
Auto tracking	Support
SD Card	Support(Max:512GB)
POE Function	Support
Network protocol	TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP,RTMP
Presets	255
Optical focus	90X/54X
ONVIF	support
Rotation	90 degrees vertical,360 degrees horizontal
Water resistance	IP66
Work Temperature	-50°C ~ +60°C

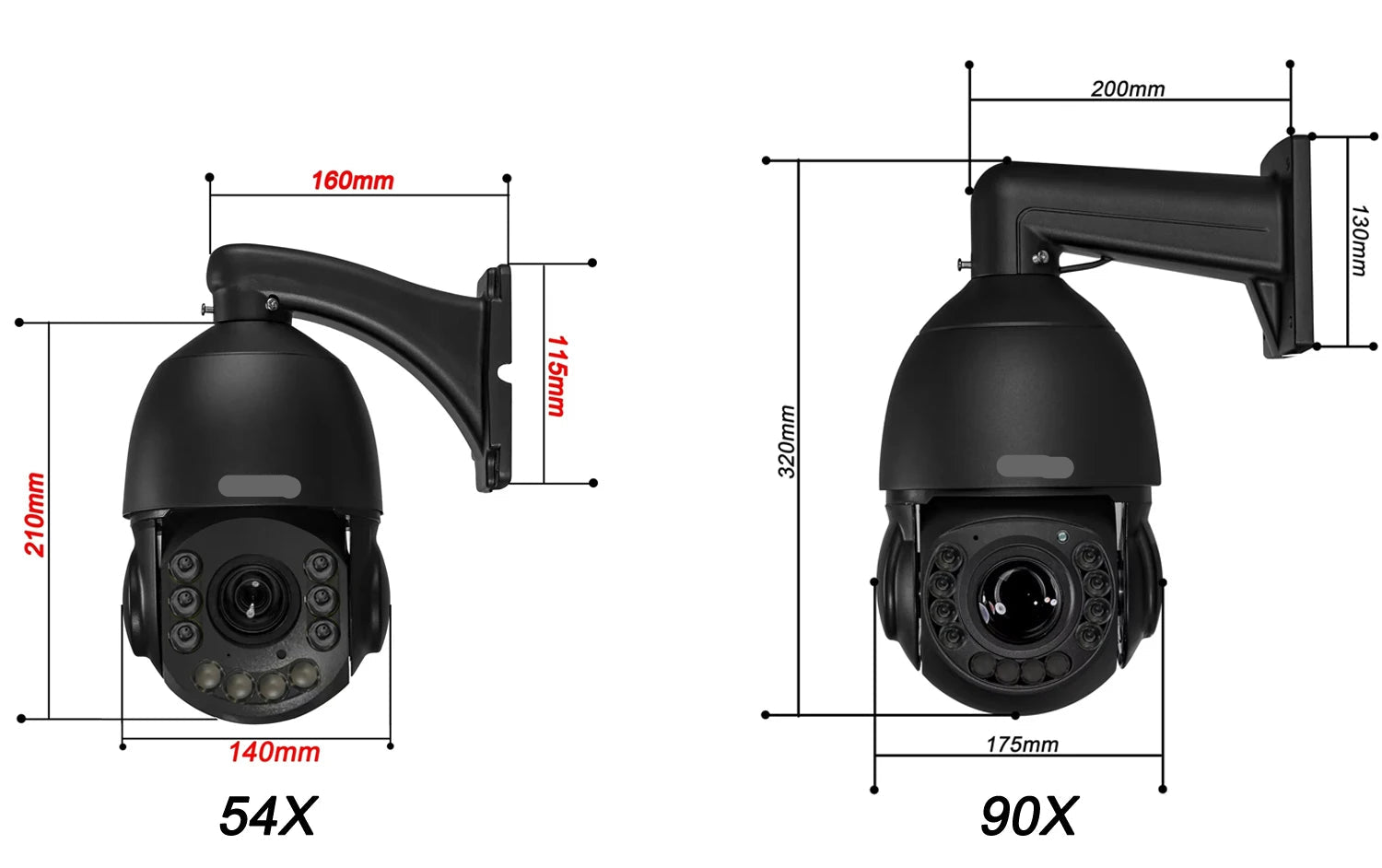

Weight	1.95kg(54X)3.5kg(90X)
Phone monitoring	Videolink
Power Supply	Power by POE





Friendly Reminder:

• the default ip address is 192.168.1.XXX please use PC Software or NVR find ip address.

• if choose buy poe ip camera, this camera support 12V DC and 48V POE
